INLINE3D · OPTICAL METROLOGY

3D measurement and AI inspection for production

Measure component geometry, check feature presence and inspect visible weld seams with a configurable multi-camera system.

Discuss your inspection task

MACHINE VISION CAPABILITIES

100 %
INLINE INSPECTION
30 SECONDS
CYCLE TIME
0,010 MM
PRECISION
200 + PARALLEL COMPUTATIONS

PRECISION ENGINEERING

Precision engineering involves meticulous design, development, and manufacturing of vehicle components to exact specifications and tolerances. To achieve precision in your production is to incorporate Inline3D machine vision system, ensuring unparalleled accuracy and efficiency in your manufacturing process.

Production

Perfect for fully automated mass production. System is incorporated into production line with conveyor belt, robot or manual manipulation.

Any welded product, no upper limit in size. Product is complex with hundreds of features and comprised of welds that need to be inspected.

Data & analysis software

Included software allows you to control and monitor decisions of live measurements. It enables you to prevent mistakes and adjust your manufacturing process in real time.

It also allows you to store figures of all products and analyse visual data, to ensure consistent, comparable and reliable manufacturing process.

Optical measuring system

Guarantees 100% inline measuring inspection in mass production. Cycle measuring time below 30 seconds, precision below 0,01 mm.

Photogrammetry principle accurately measures geometrical stability, defines presence checks of features and welds.

Weld seams. Multiple views. One inspection system.

Combine dimensional measurement with AI inspection of visible weld seams. CAD setup, camera visibility checks and selected illumination support each inspection task.

Explore weld seam inspection

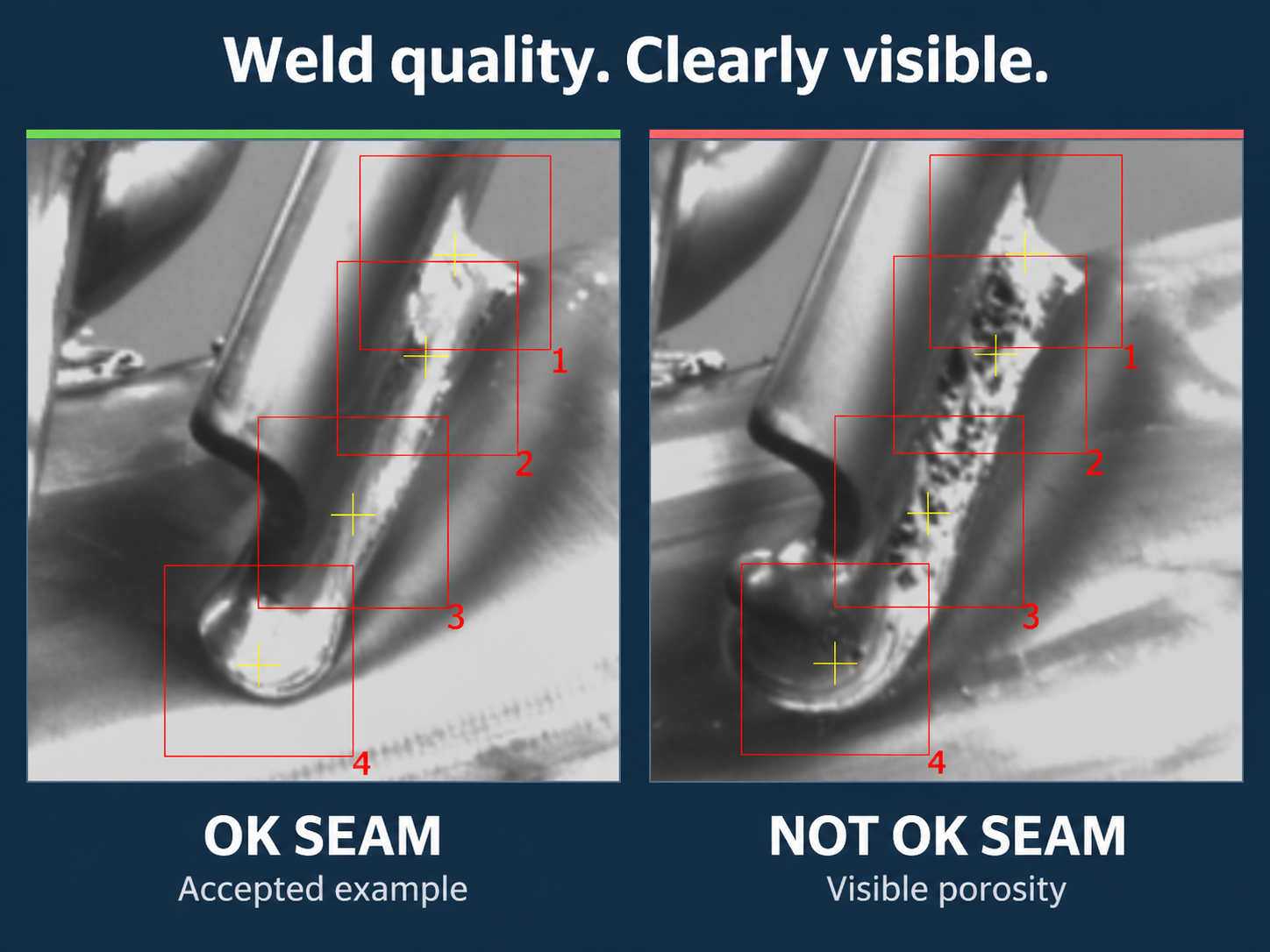

OK weld seam compared with a not OK seam showing visible porosity

SATISFIED CUSTOMERS

Driving Innovation with Machine Vision:
TPV Automotive and Inline3D

Click HERE to see the whole story.

“In the world of precision manufacturing, machine vision systems act like quiet architects, turning math into precise measurements. Behind every measurement, there’s a complex dance of algorithms ensuring accuracy and efficiency, crucial for maintaining quality control in production.”

— Dr. Wolfgang Kaumanns, Head of Software Development at Inline3D

Inspection systems and CStream technology

Built around the parts you make

Understand the result behind every check

Connect inspection results with camera images and CAD views. Inline3D software supports customer programming, reporting and investigation of production variation.

Explore software and technology

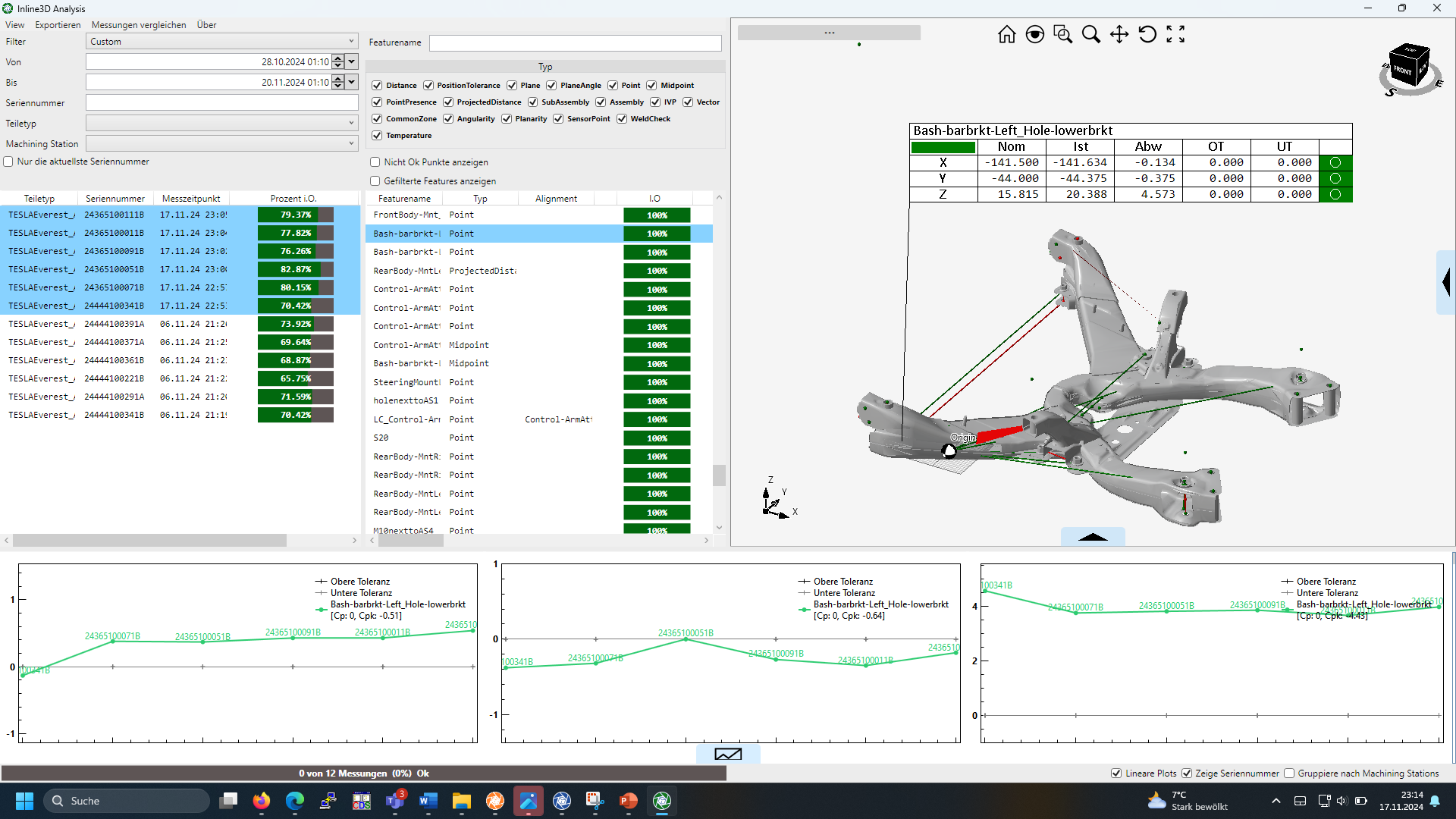

Inline3D measurement analysis software

Inline3D Software Modules

Inline3D
Inspect
Inline3D
Setup
Inline3D
Features
Inline3D
Image Studio
Inline3D
Correlate
Inline3D
Calibrate
Inline3D
Analyze
Inline3D
Absolute

Worldwide delivery

By implementing machine vision system with 100% measuring capabilities, into your production line, you will cut costs, eliminate waste and improve your efficiency.

Stationed in Europe, however the delivery and training is performed on-site and worldwide.

Engineering from Germany. Support for international production.

Founded in 2017, Inline3D develops optical measurement systems for industrial production. Our team works with customers on installation, programming and training.

Contact our locations in Germany, Chengdu in China and Campinas in Brazil.

Locations and contact

Read the TPV Automotive customer story

Let’s review your component

Share your CAD data, inspection requirements and target cycle time. We can review the system configuration and integration with your team.

Contact Inline3D
